Double Acting Pneumatic Solenoid Valve 220V 5 Way 2 Position

  • 1
  • 2

Brand Name : DOPOW

Model Number : 4V230-08

Certification : CE ISO9001

Place of Origin : Yueqing China

MOQ : 1 PC

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 100000PCS/MO

Delivery Time : 5 working days after receiving the customers' payment

Packaging Details : Wooden box，Standard carton packaging

Product Name : Pneumatic Solenoid Valve 220V

Valve Type : 5/2 Way, Single Solenoid

Working pressure : 0.15-0.8MPa

Port Size : 3/8

Working Temperature : 0℃~60℃

Power : Pneumatic

Action : Direct Acting

Material : Aluminum

Contact Now

Solenoid Valve 24v dc 4V230-08 Double Acting Coil Directional Pneumatic Air Valve

Features:

1). Pilot-oriented mode: Optional for internal or external.
2). Structure in sliding column mode: Good tightness and sensitive reaction.
3). 5 way 2 position solenoid valves have memory function.
4). Double control solenoid valves have memory function.
5). Internal hole adopts special processing technology which has little attrition friction, low start pressure and long useful life.
6). No need to add oil for lubrication.
7). It is available to form intergrated valve group with the base to save installation space.
8). Affiliated manual devices are equipped to facilitate installation and debugging.
9). Several standard voltage grades are optional

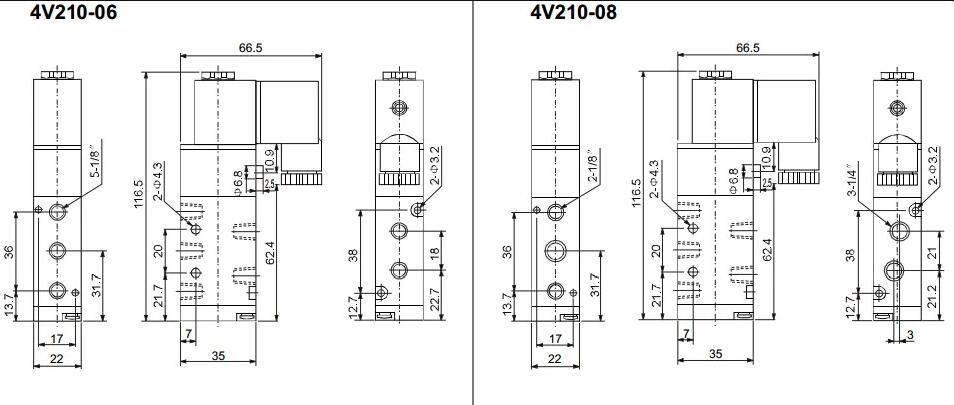

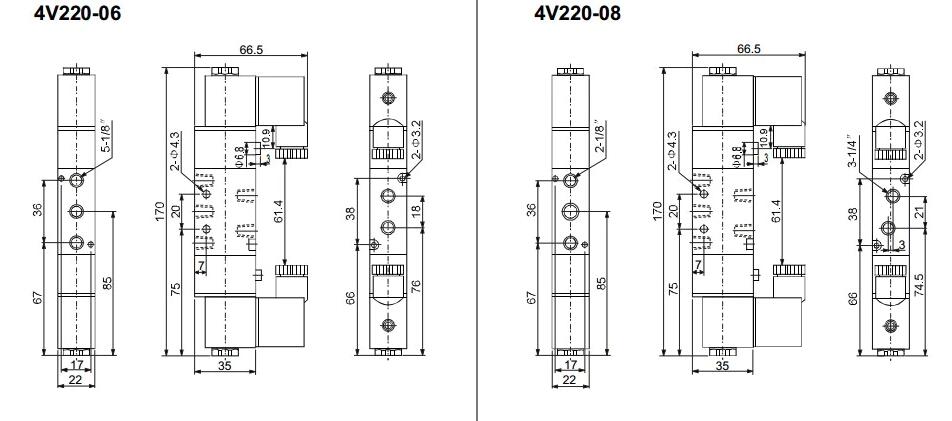

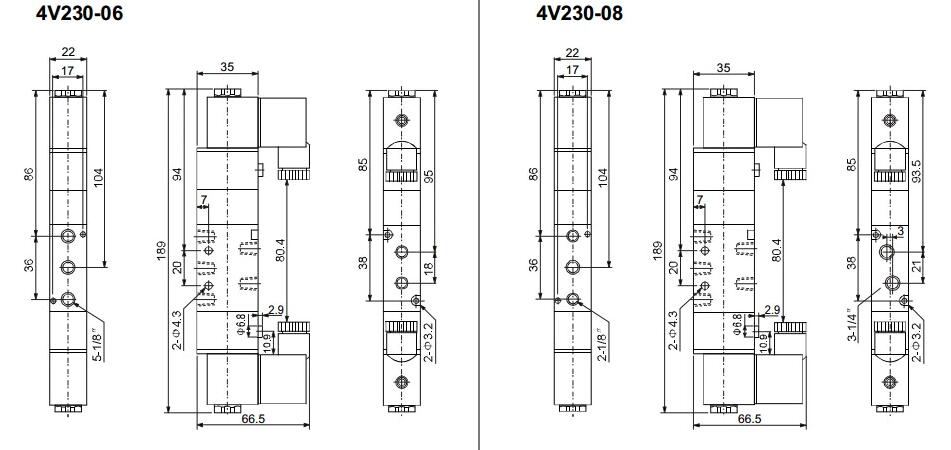

Overall Dimension:

Double Acting Pneumatic Solenoid Valve 220V 5 Way 2 Position

Double Acting Pneumatic Solenoid Valve 220V 5 Way 2 PositionDouble Acting Pneumatic Solenoid Valve 220V 5 Way 2 Position
