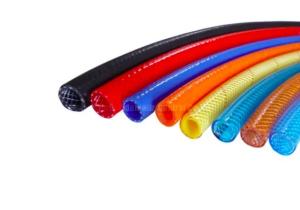

20Bar 12mm Double Layer Pneumatic Air Tubing, TPU Fiber Braided Air Hose
PUB Series TPU and Fiber braided air hose outer dia.8mm,10mm,12mm,13.5mm,18mm working pressure 20bar e.g PUB8x5-100M-BU
Quick Detail:
* PUB Series TPU and Fiber Braided air tube
* Thermoplastic Polyurethane material inside and outside double layer
* high-Fiber material line reinforced in the middle
* high working pressure up to 20bar,bursting pressure up to 60~80bar
* outer Dia. Metric size 8mm, 10mm,12mm, 13.5mm,18mm
* conform to ROHS environment protection requirement
* high flexibility for piping working
* small bending radius,applicable for occasions of big bending
* superior anti-vibration,anti-corrosion,anti-weather,anti-Chemical and anti-oil
* outstanding anti-weater,anti-curve and anti-fatigue
* Anti-UV class reach up to 3.5,maintain colour even in outdoor application
* wide applicable range of tempeature
* various tube colours for option make it easier to distinguish pipes one another
* low absorb rate,low physical performance deterioration and low changeable rate of measurement
* non-toxic,tastless
Applications:
PUB TPU Braided air hose used widely in industrial area like automotive,textile,air compressor,painting,welding,hardware tools, agriculture, Food,medicine,civil engineering,farming industrial, landscape irrigation, electronic industrial etc
PUB Series air hose used in the auto reel as fluids transporation.
Specifications:
| ORDERING CODE |
| PUB |
8x5 |
100M |
BU |
| Type |
O.Dx I.D Metric Size |
Meters Per Roll |
Colours |
| PUB:TPU BRAIDED TUBE |
8x5 |
100M/Roll |
BU:BLUE |
| 10x6.5 |
B:BLACK |
| 13.5x9.5 |
R:RED |
| 12x8 |
T:TRANSPARENT |
| 18x12.7 |
O:ORANGE |
SPECIFICATION
1,Material: Thermoplastic Polyurethane and High-Fiber
2,Working Fluids:Air,water,oil
3,Working Pressure:-0.2bar~20bar
4,Working Temperature:-40~80℃
| MODEL NO |
O.D |
I.D |
TOLERANCE(mm) |
THICKNESS(S) |
BURSTING PRESSURE(BAR) |
| PUB8×5/100M |
8 |
5 |
0.1 |
1.5 |
60~80 |
| PUB10×6.5/100M |
10 |
6.5 |
0.12 |
1.75 |
60~80 |
| PUB12×8/100M |
12 |
8 |
0.15 |
2 |
60~80 |
| PUB13.5×9.5/100M |
12 |
9 |
0.15 |
2 |
60~80 |
| PUB18x12.7/100M |
16 |
12 |
0.15 |
2.65 |
60~80 |
